Environmental Chamber

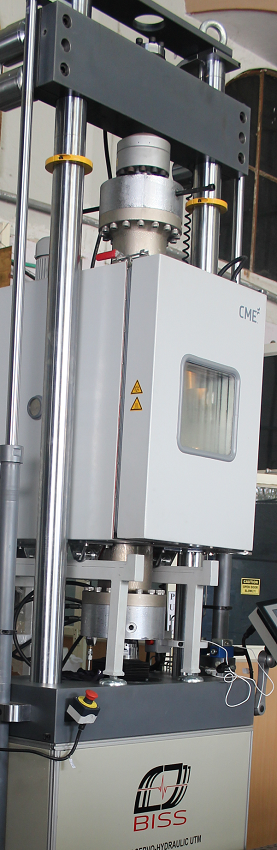

BISS supplies test systems equipped with the furnaces and with the environmental chambers for applications at elevated temperature and at low temperature respectively. This series of chambers are designed for integration with Universal Testing Machines for static and fatigue testing of materials under controlled temperature and humidity.

Features

  • Refrigerant based cooling up to – 70°C`
  • Liquid nitrogen based cooling up to -170°C
  • Air heater based heating up to +350°C
  • Monoblock construction
  • Internal surface pre-polished stainless steel with high gloss brush finish
  • PUF insulation with low conductivity
  • Standard dimensions of: 350 (W) x 400 (D) x 550 (H) mm
  • Roller carriage brackets to roll back chamber when not required
  • Temperature stability: ±2°C
  • Maximum temperature overshoot: 2°C
  • Measurement accuracy: ±2°C
  • System accuracy: ±5°C
  • Power requirement: 220 V, 50 Hz, Single Phase
