Monotonic Testing Software
BISS Tension, Compression and 3-point bend application software to perform tests (as per ASTM E8M, E9, E855 and D790) under MTL-32 environment with 2370 series controller.

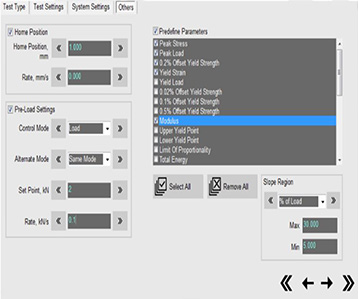

The user interface includes specimen description, loading parameters, pump controls, test run/stop, graph display, numeric readouts of several relevant test parameters. Test descriptions and test settings are available as panels accessed by clicking on relevant tabs or pull down menus.
Standard Features
- Tests can be done in stroke, load orstrain control.
- Online graphs of stress vs strain, loadvs displacement, load vs time,displacement vs time etc.
- Option to save the test proceduresand recall them for future use.
- Change of test speeds can beprogrammed for one test run
- Data storage and recalling facility
- Auto data acquisition settings
- Option to view multiple test graphs in one plot.
- Option to remove the extensometer and continue the test in stroke control.
- Option to stop the test after specified percentage load drop.
- Limit settings on stroke, strain and load channels.
- Offline post processing program to analyze the results in MS Excel.
- Option to batch processing the data.
- Post processing includes important calculations such as: Peak load, stress & strain, breakload, stress & strain, true stress & strain, strain @ load, load @ strain, young’s modulus, % ofelongation @ break, % reduction in area, yield stress & strain, upper & lower YS, proof stress @specified strain (0.2%, 0.5% etc), strain hardening coefficient, ‘n’ value, ‘r’ value, ‘K’ value,and many more

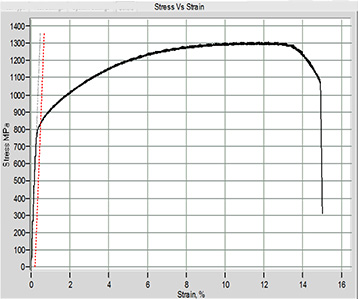

Tensile Test Results: Stress-Strain Plots
Indivudual Plot
Tabulated results
| Peak Stress: | 1308.721 | MPa |
| Peak Load: | 25.7 | kN |
| 0.2% Offset Yield Stress: | 846.499 | MPa |
| Yield Load: | 16.623 | kN |
| 0.02% Offset Yield Stress: | 761.042 | MPa |
| Modulus: | 201.167 | GPa |
| Total Energy: | 86.593 | kN -mm |
| Energy under Plastic Region: | 58.295 | kN -mm |
Batch Processing Plots
Tabulated results
| Specimen ID | Width (in) | Thickness (in) | Max Stress (Ksi) | Stress @ 18% Strain(Ksi) | Modulus (Ksi) | Peak Load (Kip) |
| 1 | 0.24 | 0.07 | 2.161 | 2.128 | 57.144 | 0.036 |
| 2 | 0.236 | 0.071 | 2.329 | 2.296 | 59.9 | 0.039 |
| 3 | 0.24 | 0.072 | 2.237 | 2.227 | 57.869 | 0.039 |
| 4 | 0.241 | 0.069 | 2.189 | 2.167 | 56.129 | 0.036 |
| 5 | 0.24 | 0.071 | 2.294 | 2.273 | 63.961 | 0.039 |
| 6 | 0.241 | 0.071 | 2.233 | 2.212 | 60.915 | 0.038 |
| Average | 0.239 | 0.0706 | 2.24 | 2.217 | 59.319 | 0.037 |
