LCF Application Software

AC-08-0003 LCF application is intended to perform Low Cycle Fatigue test (as per ASTM E606) under MTL-7 environment with 2350/2360/2370 controller. The user interface includes specimen description, loading parameters, pump controls, test run/stop, graph display, numeric readouts of several relevant test parameters. Test descriptions and test settings are available as panels accessed by clicking on relevant tabs or pull down menu

1 / 6
2 / 6
3 / 6
4 / 6
The Woods
Cinque Terre
Cinque Terre
Cinque Terre

Features

  • Tests can be done in stress control, total strain control and plastic strain control
  • Online display of loading modulus, unloading modulus, K’, n’ yield stress, plastic strain, max-min stress and strain.
  • Limit settings on stroke and strain
  • Auto data acquisition settings.
  • Online graphs of stress vs strain and transients.
  • Offline post processing program to analyze the results in MS Excel.
  • Option to save the test profiles. • Option to remove residual strain.
  • Option to add strain to gage length.
  • Option to terminate the test at specified modulus drop, stress drop and/or increase in strain.

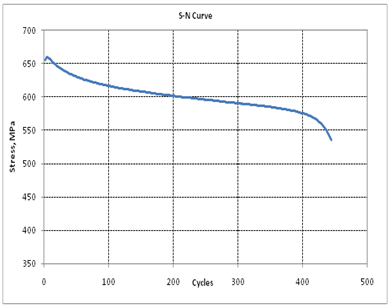

LCF Result Table:

Initial Halflife Final
Stress Amp 657.616 598.145 539.585 MPa
Strain Amp 0.897 0.896 0.896 %
Pl. Strain 0.726 0.742 0.756 %
Stress Mean -17.765 -7.37 -23.471 MPa
Strain Mean -0.001 0 0 %
Un. Modulus 183.004 183.575 181.756 GPa
E-Unl/Ld 0.914 0.898 0.857
0.2% YS 587.77 533.901 452.684 MPa
0.02% YS 427.148 392.245 300.879 MPa
Strain Hard. Coeff. 1391.96 1227.289 1074.3 MPa
Strain Hard. Exp. 0.139 0.134 0.128
Energy 16.214 15.11 12.892 MPa.e/e

    For more information please
