CV Joint Test System

BiSS CV Joint Test System for constant velocity testing as per SAE J 2028. The test setup evaluates the quality of CV joints by simulating the actual movements as in automobiles with BiSS 2370MS controller.

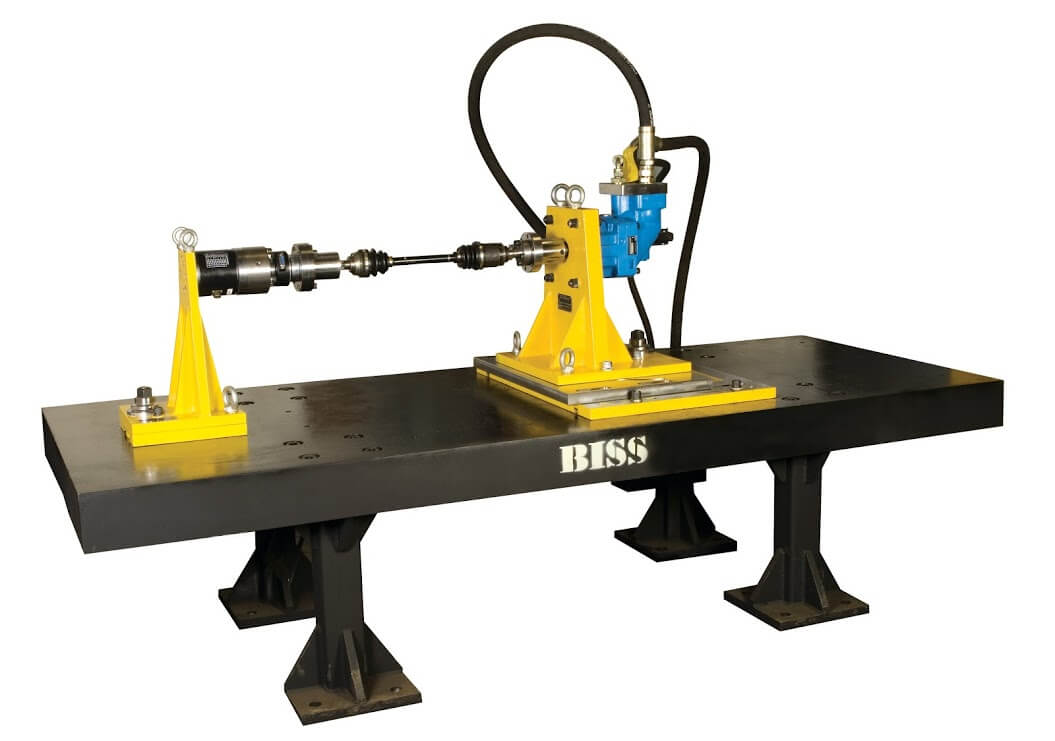

The two mounting blocks bolted on the frame support a hydraulic motor and a torque load cell coupled with transducers for precision measurement and customized grips to hold the test specimen. The mounting blocks have provision to rotate (+/-45°) and also to move to and fro adjusting to the varying lengths of specimen.


Features

  • Hydraulic Torque Motor
  • Torque load cell
  • Suitable for static and dynamic testing
  • "Green" highly efficient hydraulic powerpack
  • Up to 40 kHz, 32-bit digital closed loop control
  • Environmental chambers

Applications

  • Articulation torque test to measure the torque required to rotate the shaft, when articulated at any point between 0 to 50 degrees
  • Measures backlash of the joint, maximum articulation angle, maximum articulation angle and force at any articulation angle from 50 degrees
  • Optional testing under cold temperatures up to -400C
  • Optional testing under hot temperatures up to 2000C
  • Radial expansion measurement
