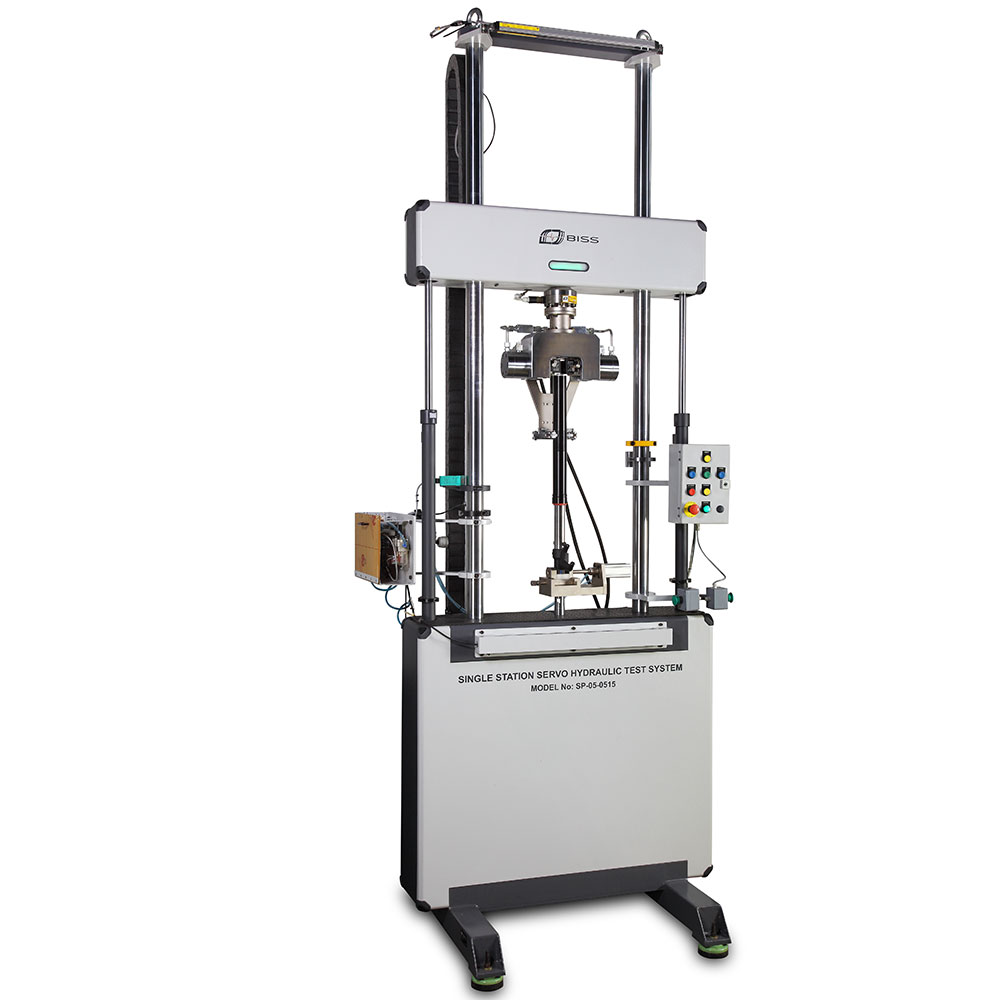

Single station DFT system is typically used in a production plant where the work load is not that high. The maximum test velocity can be up to 1.5 m/s and dynamic force capacity up to 35 kN.
Features
Self-aligning automatically operated pneumatic grips and fixtures to hold the test parts
Fully automated testing so that a least skilled operator can carry the production tests
Safety interlocks for the protection of operator, test sample and equipment
Can be integrated with drives made of servo hydraulic or crank-mechanism or electromagnetic
Automatic barcode printing on the tested part
Configurations available from 5 to 35 kN dynamic capacity
Velocity rating 0.005 to 1.5 m/s
Hydraulic movable top crosshead with position control
Quick change of jaw faces and spacers to switch between the parts
Hydraulic side acting grips
Top and bottom tooling to suit threaded, rod eye mounts and body clamping
